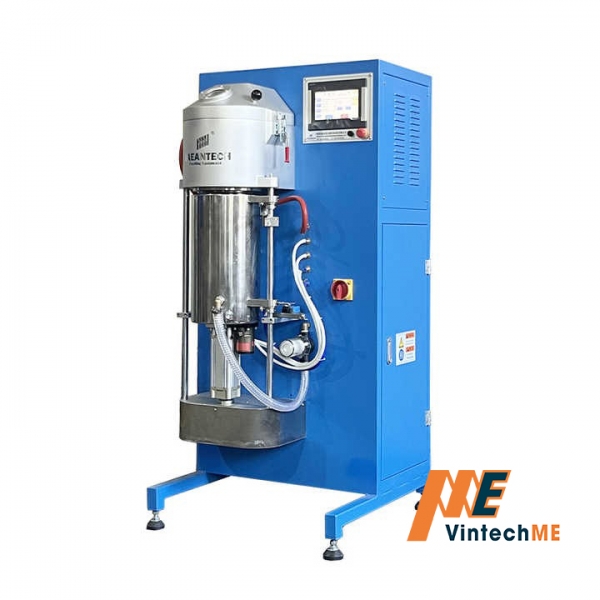

Jewelry Vacuum Pressure Gold Platinum Casting Machine

Dual Chamber Application

Fully automatic vacuum jewelry casting machine adopts a revolutionary new dual chamber concept. Its melting chamber and casting chamber are completely independent. When casting, the machine can control the injection of metal into the mold by applying a pressure difference during the pouring process.

Creates a high vacuum environment for jewelry casting under a pressurized pressure of 10 – 120 kPa. Precious metals will not contact air to cause oxidation, and the cast jewelry will be free from bubbles, pores, and defects.

PID temperature control panel maintains temperature accuracy within ±1 °C.
Mitsubishi PLC human–machine interface enables one-click fully automatic operation.

The casting chamber uses air‑pressure automatic lifting, convenient for loading/unloading castings. This increases chamber volume and pressure, significantly enhancing casting results.

Max temperature: 2100 °C.
At 1600 °C can cast gold, silver, and other low‑temp metals.
At 2100 °C can cast high‑temp refractory metals like platinum, palladium, and rhodium.

Parameter	Specification
Power (max)	15 kW
Electrical Connection	380 V, three‑phase
Temperature (max)	2100 °C
Melting Time	3–5 minutes
Capacity	1–10 kg
Suitable Metals	Platinum, gold, silver, copper, alloy
Casting Pressure	10–120 kPa (adjustable)

Low‑Energy Induction System:
High‑frequency IGBT induction coils reduce energy consumption by ~30% compared to resistance furnaces.
Eco‑Friendly Insulation:
Uses recyclable, non‑toxic ceramic insulation—free from asbestos, formaldehyde, or halogen compounds.
Closed‑Chamber Operation:
Sealed vacuum‑pressure design minimizes metal vapor emissions, protecting air quality (ISO 14001 compliant).

Jewelry Manufacturing & Custom Workshops:

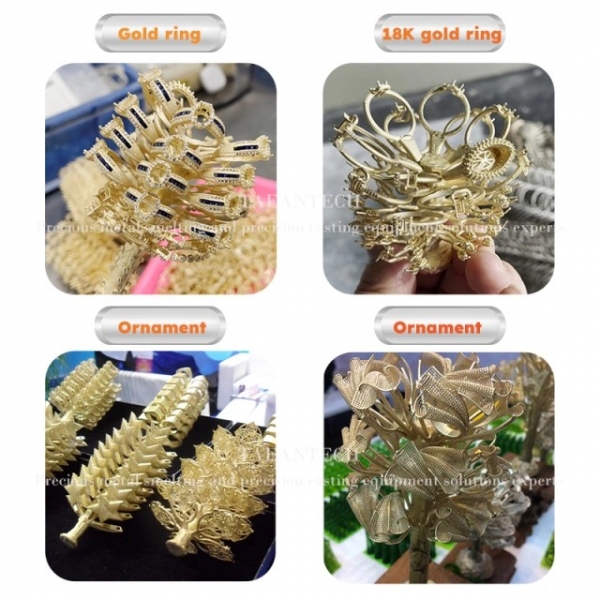

Produces flawless engagement rings, pendants, bangles, designer pieces; prevents porosity/shrinkage—ideal for platinum & gold.
Research & Metallurgical Labs:
Supports experimental casting and alloy testing; precise temperature control and programmable logic make it suitable for university labs and R&D.
Boutique Foundries & Art Studios:

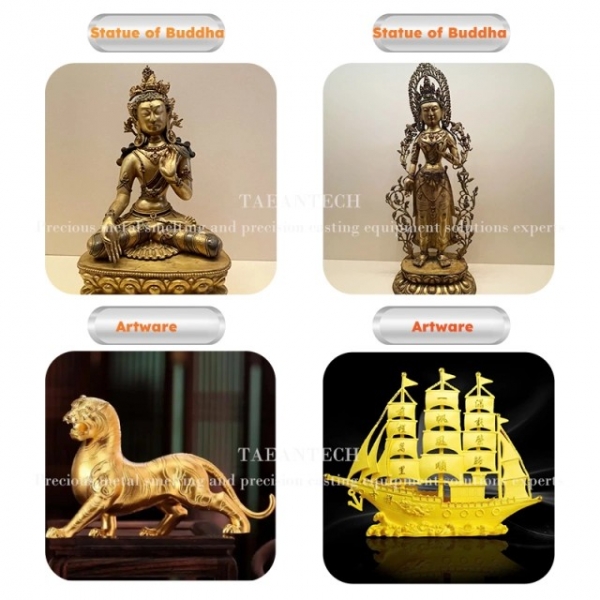

Delivers detailed, defect-free castings for artistic and architectural components.
Prototyping & Small‑Scale Production:
Suitable for aerospace, electronics, dental industries; bridges lab flexibility and industrial-grade repeatability.

Creates vacuum + inert gas (argon) environment to prevent oxidation.
Applies pressure + vibration for complete mold filling and product integrity.
Automatic lifting/lowering reduces manual work, increases pressure, shortens cycles, and enhances safety.
Dual crucible capability allows easy switching between metal types.
