Applications
Walk-in test Chambers are used for various types of testing such as prototype evaluation, research & development testing, production testing, accelerated stress testing, reliability testing, failure analysis, and any other application where environmental simulation is needed.
Features

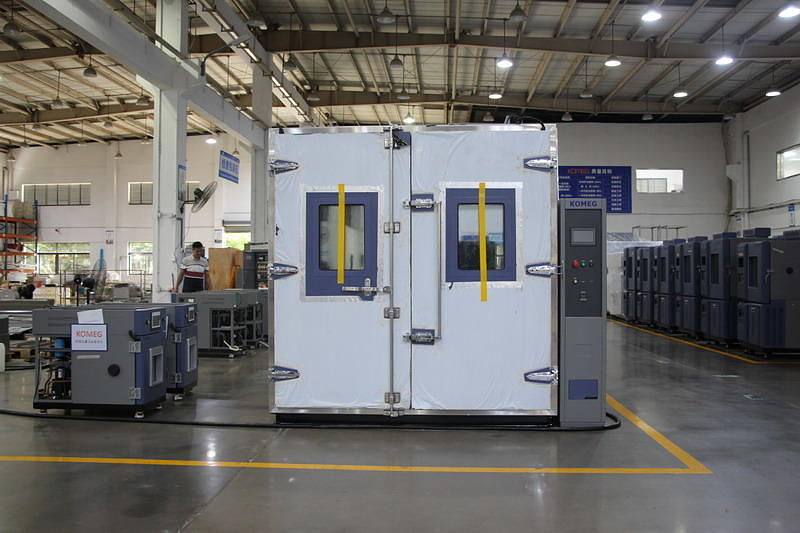

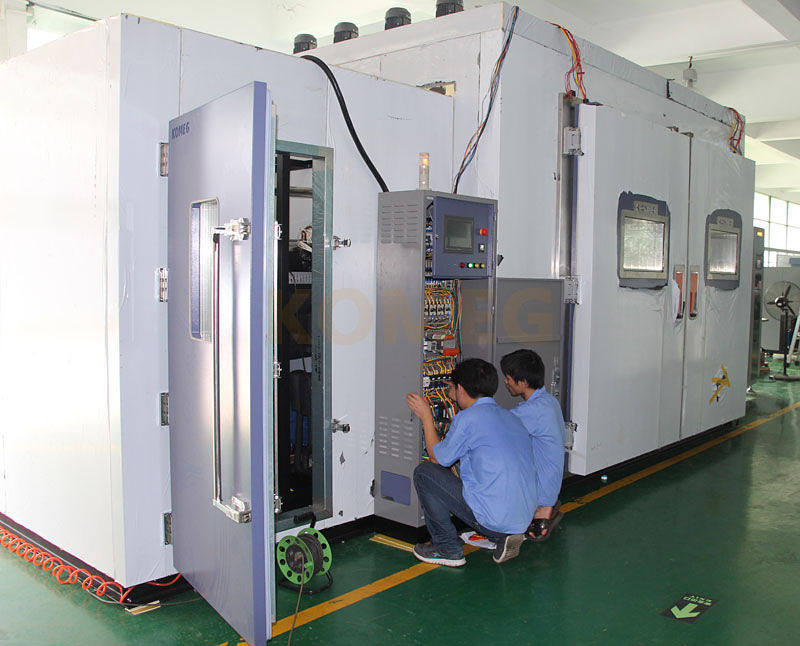

Walk-in, Drive-in Type
Stainless steel interior (or galvanized for savings)
Painted galvanized steel exterior for long life
MAP service doors are hinged (no tools or lifting)
Easy access to components
Reliable steam generator system for humidity applications
Sheathed electric heaters for safety and reliability
Adjustable vanes in supply grille allow directing of airflow as needed
Standards Implemented and met
GB-2423. 1-89(IEC68-2-1) Test A: Low-Temperature Test
GB-2423. 2-89(IEC68-2-2) Test B: High-Temperature Test
GJB360. 8-87(MIL-STD．202F) High-Temperature Operating Life Test
GBJl50. 3(MIL-STD-810D) High-Temperature Test
GJBl50. 4(MIL-STD-810D) Low-Temperature Test
GB2423. 3-93(IEC68-2-3) Test Ca: a method for steady-state damp heat test
GB2423. 4-93(IEC68-2—30) Test Db: Damp-Heat Alternative Test
GJBl50. 9-93(MIL-STD-810D) Damp Heat Test
Specifications
High quality and reliability performance;
Controller: Touch screen, parameter and program control;
Competitive price and 12 months free parts warranty.
| Model | 4 | 6 | 8 | 13 | 17 | 21 | |
| Interrior material (cm) | W | 210 | 300 | 390 | 300 | 390 | 480 |
| H | 210 | 210 | 210 | 210 | 210 | 210 | |
| D | 205 | 205 | 205 | 430 | 430 | 430 | |
| Volume(M3) | 9 | 12.9 | 16.8 | 16.8 | 35.2 | 13.3 | |
| Exterrior dimensions | W | 325 | 416 | 505 | 505 | 505 | 595 |
| H | 235 | 235 | 235 | 235 | 235 | 235 | |
| D | 225 | 225 | 225 | 225 | 450 | 450 | |
| System | Balanced & Humidity Control System | ||||||
| Temp. range | Maximum:80ºC,120ºC;Minimum:-60ºC,-50ºC,-40ºC,-30ºC,-20ºC,-10ºC,0ºC | ||||||
| Humidity Range | 10%,20%,30%~95% | ||||||
| Temp. constancy | ±0.5ºC | ||||||
| Humidity constancy | ±2.5%R.H | ||||||
| Temp. uniformity | ±2.0ºC | ||||||
| Humidity uniformity | ±5.0%R.H | ||||||
| Heat uptime | +20ºC~+80ºC ,Within 60 min | ||||||
| Pull downtime | +20ºC~-55ºC -40ºC-20ºC-10ºC ,Within 120 or 90 or 60 or 45 min | ||||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||||
| Insulation material | Rigid polyurethane foam | ||||||
| Door size (mm) | Single wing: W800*H1800; Double wing: W1600*H1800 | ||||||
| Refrigeration system | Semi-hermetic compressor, single-stage or cascade refrigeration system, CFC free refrigerant(HFC-507 and HFC-23) | ||||||
| Controller | Touch controller, Chinese menu, Operation mode: setting/program | ||||||
| Safety Devices |
No fuse breaker, over pressure over heat and over current protection for compressor,over-temperature protection, overload protection for the blower, dry heat protection |
||||||
| Standard accessories | Sight window*1,cable port(portΦ50mm)*1,chamber lamp*1, status indicator | ||||||
| Ambient Temp. | +5ºC~+35ºC | ||||||
| Power | AC 380±10%50Hz, 3 phase 4 wires +Ground Wires | ||||||
| Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | |||||||
A 31-year specialist in advanced environmental test equipment
KOMEG Technology Industrial is famous for its KOMEG star brand of environmental test equipment in China since 1990. KOMEG has specialized in climatic test chambers, thermal shock test chambers, walk-in chambers,burn-in rooms, and ageing test chambers, drying ovens, salt spray testers, medical laboratory equipment, etc.KOMEG factory is located in Dongguan, covering an area of 5,000 sqm, with over 200 employees including 26 R&D engineers.KOMEG also has offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone.
Born for quality, test for future
Born for quality, test for future is always our philosophy. Better idea, better design and better quality is our aim.KOMEG strives for continuous innovation, releasing no less than 5 new designs each year. Our strong R&D team and skilled workers are the keys to our success.No matter it is a standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more from KOMEG when working with us. And to ensure your specific test standards are met, the key components and parts are using an imported famous brand. That's why SGS, KONICA MINOLTA, SENKO, Midea, TCL, and Huawei are among our long-term clients.
