Overview

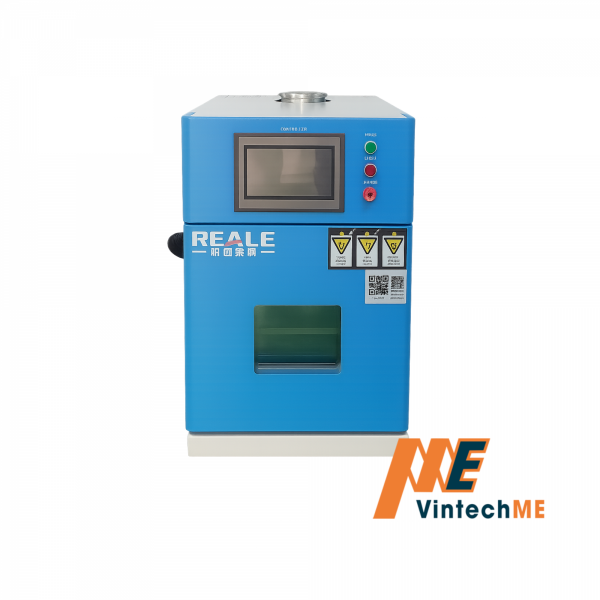

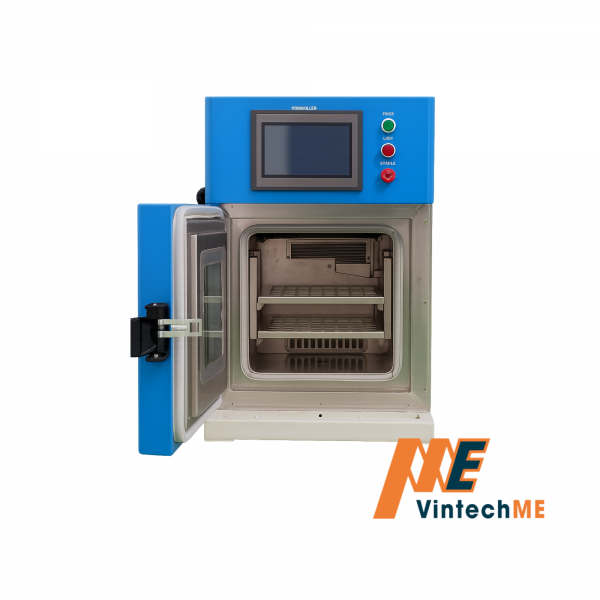

The HT-RHP-23BT Temperature and Humidity Test Chamber is designed to test and evaluate the performance and parameters of electrical, electronic, and various other materials after exposure to environmental changes in temperature and humidity. With its compact design, space-saving footprint, and easy mobility, this benchtop chamber is ideal for workplaces with limited space.
Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
HT-RHP-23BT |
|
Type |
Benchtop |
|
Internal Volume |
23 liters |
|
Internal Dimensions (W×H×D) |
300 × 300 × 250 mm |
|
External Dimensions (W×H×D) |
450 × 700 × 1100 mm |
|
Temperature Range |
-40°C to +150°C (freely programmable) |
|
Temperature Fluctuation |
±0.5°C |
|
Temperature Sensor Position |
At the set point, 1/10 from the inner wall |
|
Heating Rate |
-40°C → +150°C, nonlinear, approx. 3°C/min (no load) |
|
Cooling Rate |
+20°C → -40°C, nonlinear, approx. 1°C/min (no load) |
|
Test Load Condition |
No load |
|
Humidity Range |
20% to 98% RH |
|
Humidity Fluctuation |
±2.5% RH |
|
Humidity Deviation |
>75% RH: (+2%, -3%) |
|
Weight |
Approx. 165 kg |
