KOMEG supplies a variety of test chambers for testing batteries of any size. We offer extensive experience in chambers designed for testing NIMH, lead-acid, and lithium-ion batteries from small battery cells to large battery packs.
Battery testing chambers are supplied to a variety of industries including, automotive, computer, telecommunications, defence, and alternative energy markets. With the goal of reducing automobile emissions and the push toward electric hybrid vehicles, the need for lithium-ion battery testing is even more critical. Our proven experience provides the most cost-effective solutions.
Each test chamber is built according to specific test requirements and may be interfaced with battery cyclers, control & monitoring data acquisition systems, and other test equipment for a complete integrated test solution.

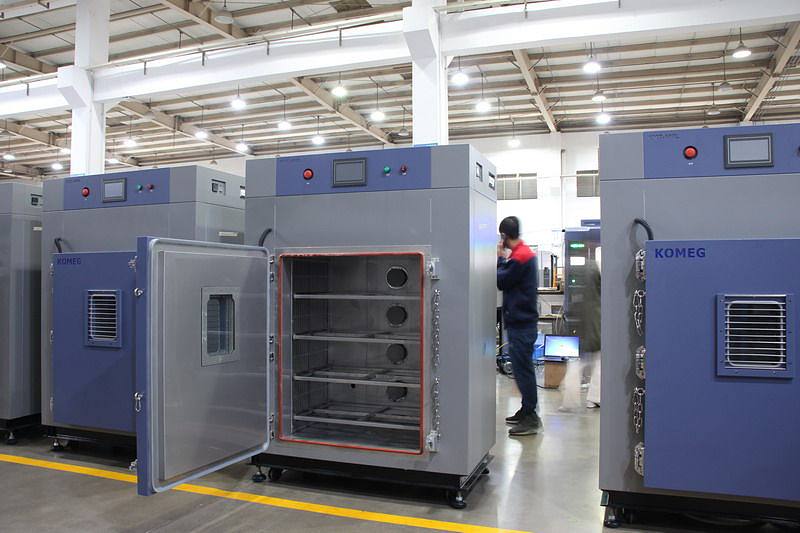

High/Low-Temperature Cycling Chambers
|
Inner Dimension |
W920 mm*H680 mm*D500 mm |
|
Outer Dimension |
About W1280 mm*H1980 mm*D1150 mm |
|
Temperature Range |
-40℃ ～ +85℃ |
|
Temperature Fluctuation |
±0.5℃ |
|
Temperature Uniformity |
≦2.0℃ |
|
Load situation |
Battery components: W120 × H44 × D150 mm, 40 pieces in total, maximum total heating 200W |
|

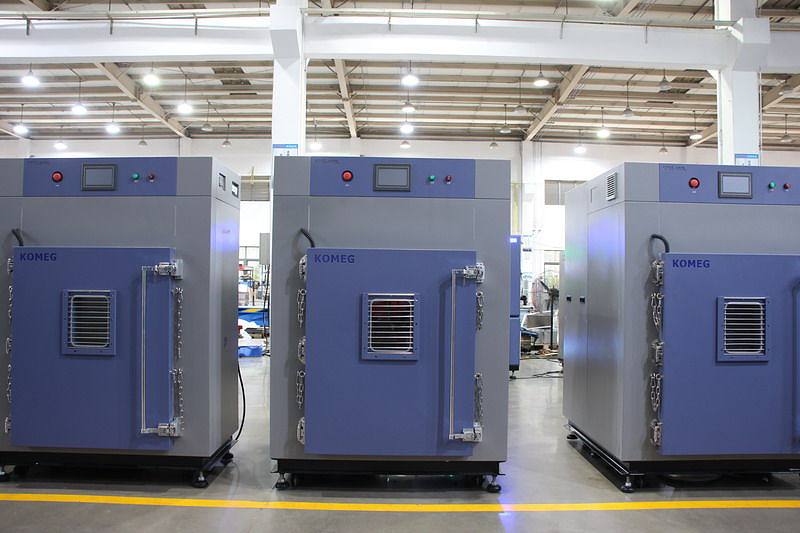

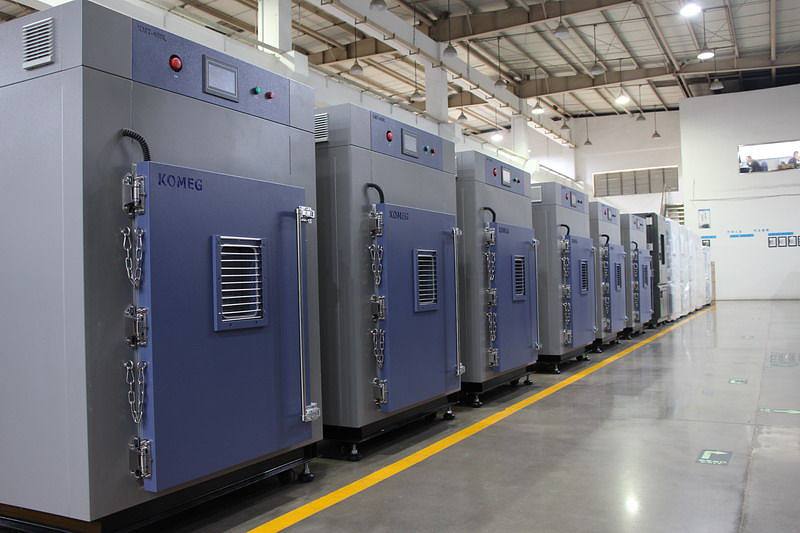

Door |
Full size door, open to left side. Sealed by silicone stripe on the frame. Heating wires are installed at the door frames to prevent condensation at low temperatures. Two explosion-proof chains are added on each side of the door, and the chain is longer. When the chamber is blasted, the door can bounce a little, allowing the internal air pressure to quickly escape, but it cannot be ejected to hurt people |
|
Explosion-proof window |
With multi-layers hollow glasses painted with electric heating layers to avoid condensation. (W 210×H 270mm), stainless steel protection net inside the glass to prevent the glass from shattering when it is exploded (cannot guarantee absolute safety). |
|
Explosive pressure relief device |
When the pressure in the equipment or pipeline exceeds the pressure of the safety valve, the pressure relief is automatically opened Equipped with: Inductive switch Features: a. When the test product in the chamber explodes, there can be a pipeline for pressure release b. Protect the test equipment from damage caused by sudden air pressure c. Protection of personnel
|
|
Fire extinguishing device
|
1. The position and number of spray outlets: the middle position of each layer behind the machine, a total of 4 2. Sprinkler mouth action mode: linkage + manual when the temperature is over temperature; 3. Type of extinguishing agent: water-based extinguishing agent 4. Spray pipe pressure: pressure ≧ 1.2MPa, pipe diameter: DN20.
|
A 31-year specialist in advanced environmental test equipment
KOMEG Technology Industrial is famous for its KOMEG star brand of environmental test equipment in China since 1990. KOMEG has specialized in climatic test chambers, thermal shock test chambers, walk-in chambers,burn-in rooms, and ageing test chambers, drying ovens, salt spray testers, medical laboratory equipment, etc.KOMEG factory is located in Dongguan, covering an area of 5,000 sqm, with over 200 employees including 26 R&D engineers.KOMEG also has offices in Shenzhen and Songshan Lake National Hi-Tech Industrial Development Zone.
Born for quality, test for future
Born for quality, test for future is always our philosophy. Better idea, better design and better quality is our aim.KOMEG strives for continuous innovation, releasing no less than 5 new designs each year. Our strong R&D team and skilled workers are the keys to our success.No matter it is a standard or custom-made project, we have rich experience in handling such so that customers worldwide can benefit more from KOMEG when working with us. And to ensure your specific test standards are met, the key components and parts are using an imported famous brand. That's why SGS, KONICA MINOLTA, SENKO, Midea, TCL, and Huawei are among our long-term clients.
